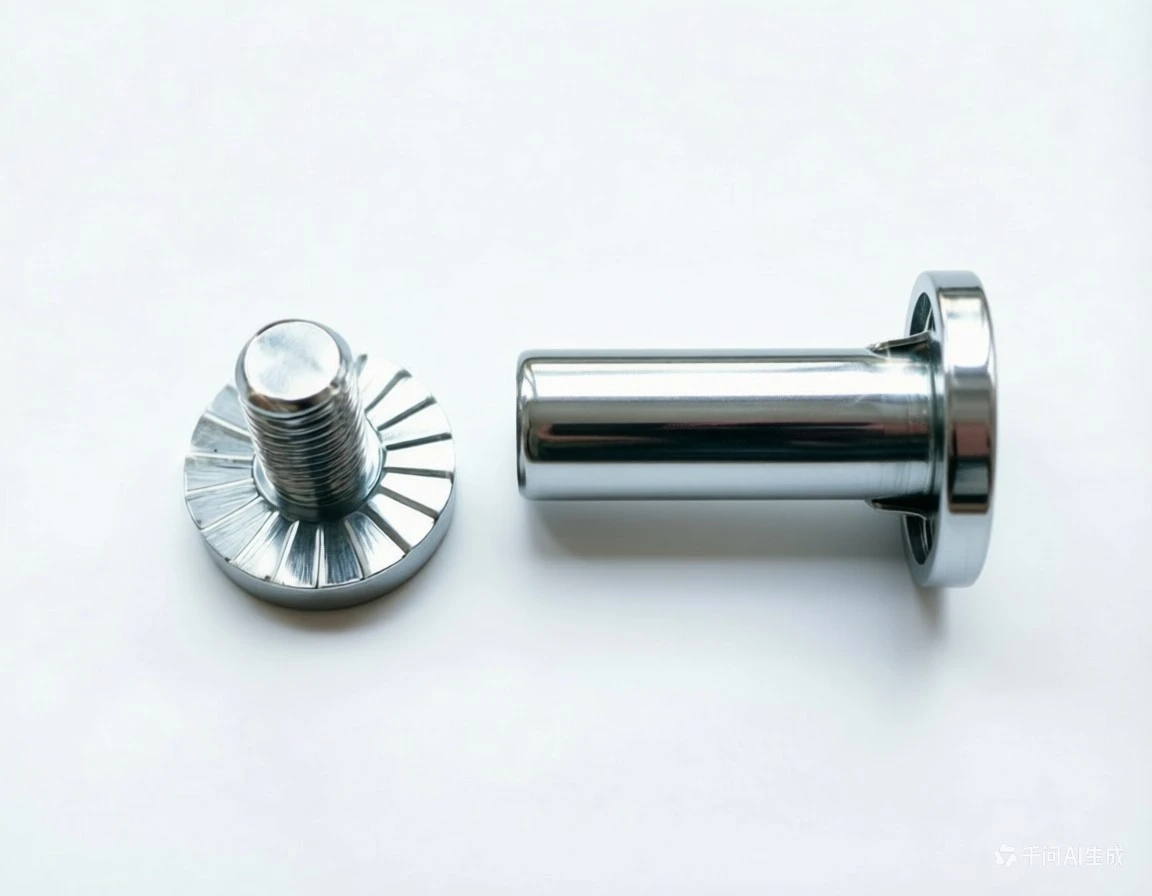

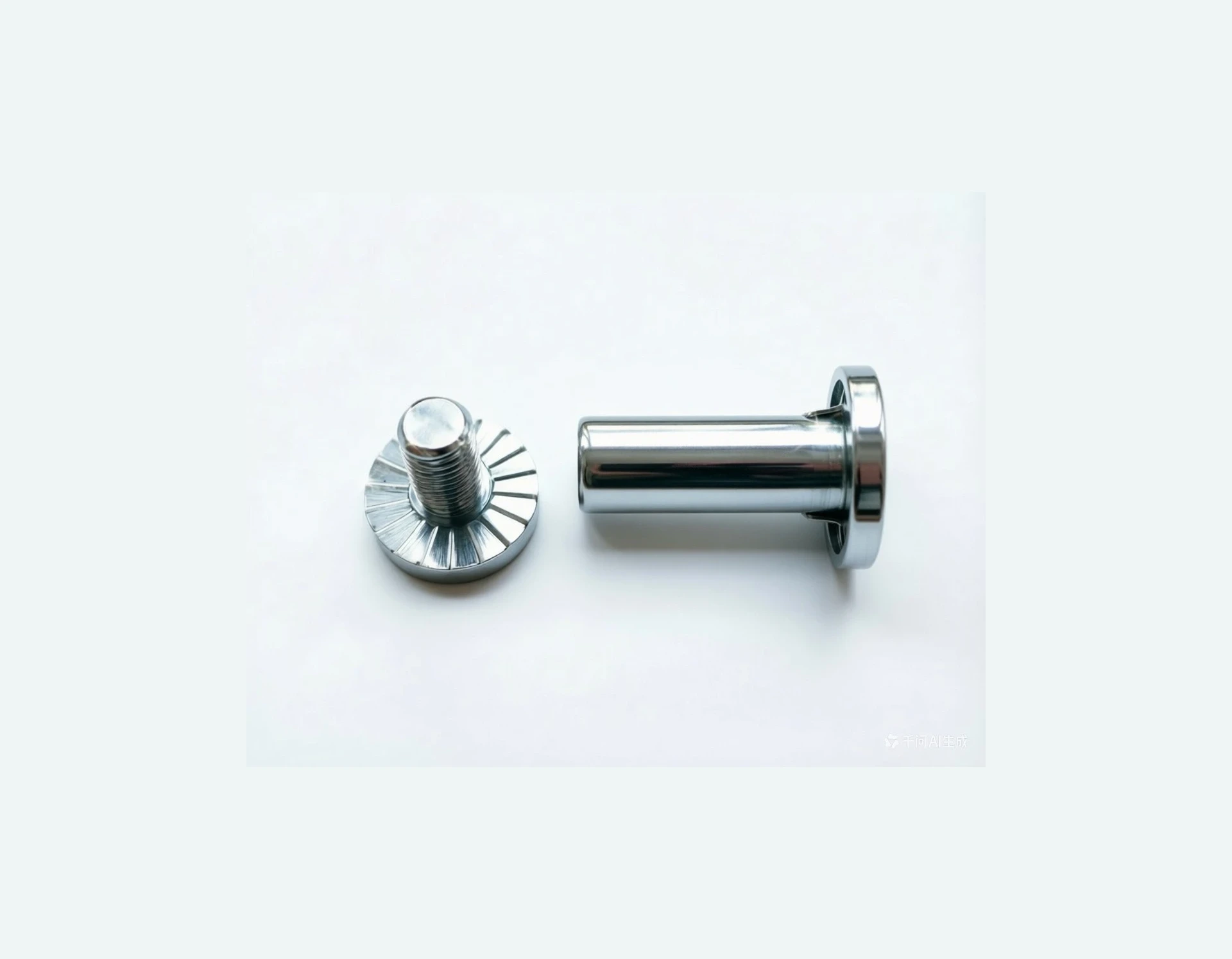

Hinge Pin with Bushing Assembly
Item No.
DWHA005
Select Options
Bushing Size
Technical Specifications
| Material | Steel |
| Bushing Diameter | Φ11.8, Φ13.5, Φ19 |
| Length | 32mm, 35mm, 44mm |
Product Overview
Product Name: Hinge Pin with Bushing Assembly (Heavy Duty)
Product Description:
This hinge pin with bushing assembly is a critical pivot component used in gate hinge systems, designed to provide stable rotation and load-bearing support for gates and doors. It is commonly used in weld-on hinge structures for metal gates, fence gates, and heavy-duty industrial doors.
The precision fit between the pin and bushing reduces friction and wear, ensuring smooth operation and extended service life. Engineered for strength and durability, this assembly performs reliably under heavy loads and frequent use.
Key Features:
Precision pin and bushing design for smooth rotation and reduced wear
Heavy-duty construction for high load capacity
Secure and stable structure for long-term use
Zinc plated or hot-dip galvanized options for corrosion resistance
Compatible with weld-on gate hinge systems
Applications:
Industrial metal gates
Fence and garden gates
Heavy-duty steel gate systems
