Screw-on plate for adjustable hinge (For DWH003)
1 / 6
Screw-on plate for adjustable hinge (For DWH003)
Screw-on plate for adjustable hinge (For DWH003) — M16

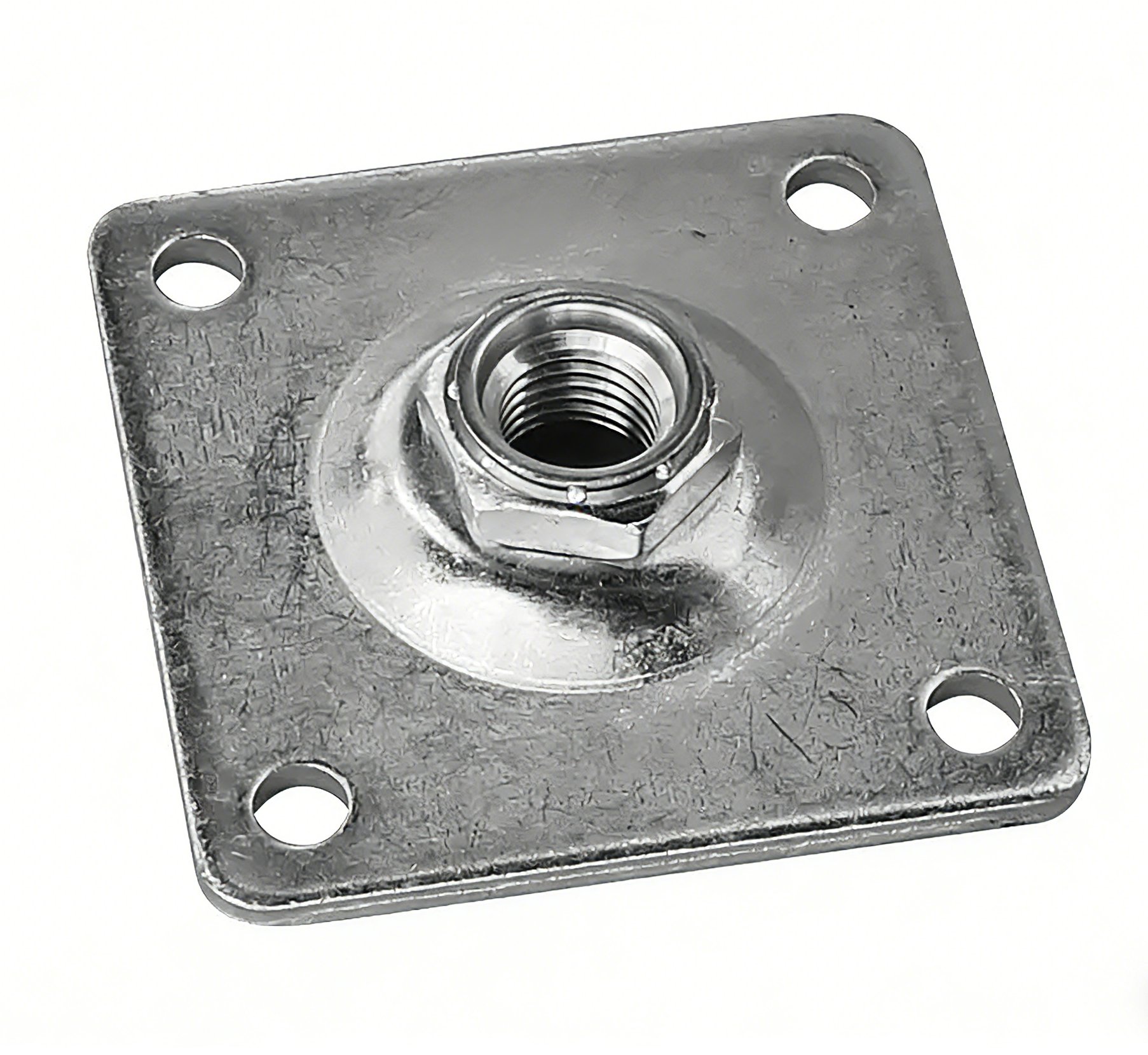

Screw-on plate for adjustable hinge (For DWH003) — M18
Screw-on plate for adjustable hinge (For DWH003) — M20
Screw-on plate for adjustable hinge (For DWH003) — M24
Screw-on plate for adjustable hinge (For DWH003)
Packaging & Logistics
Per Unit
0.226 kg
—
WT (kgs) / VOL (m³)
Per CTN
10 pcs
—
2.26 kg GW
Qty / Dim / GW
20' CNTR Load
—
CTNs · ≈25 m³
40' CNTR Load
—
CTNs · ≈55 m³
Hinge

Screw-on plate for adjustable hinge (For DWH003)

Item No. DWHA003
Brand: FiYo Unit: Pcs HS Code: 8302.41
Select Options
Size
Unit Price
Price on Request
Minimum Order Quantity 500
Technical Specifications
MaterialSteel (galvanized)
Plate size80mm, 90mm, 100mm, 120mm
Base thickness4mm, 4mm, 5mm, 6mm
Thread diameterM16, M18, M20, M24
Mounting hole diameter10.5mm, 11mm, 11mm, 11mm
Total thickness18mm, 20mm, 22mm, 24mm
Back
Product Overview
